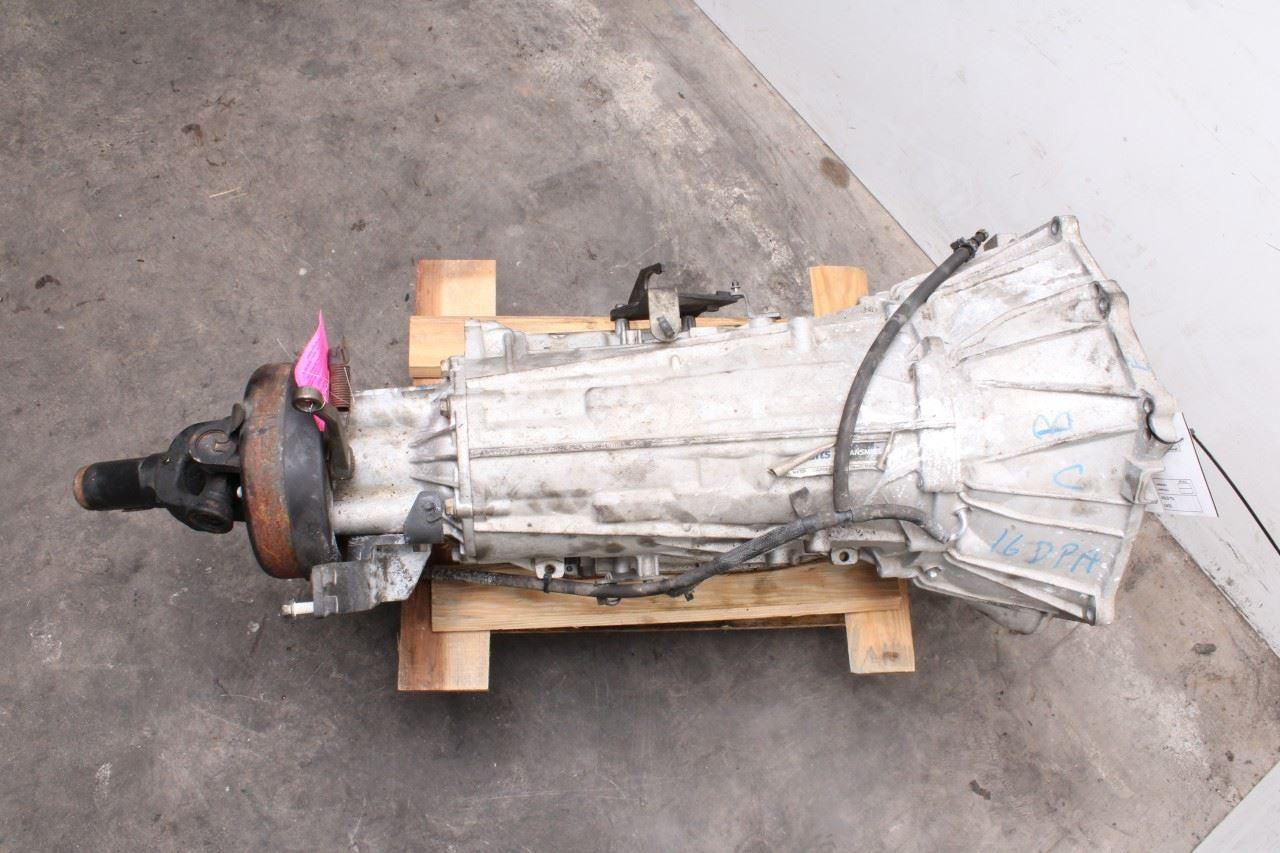

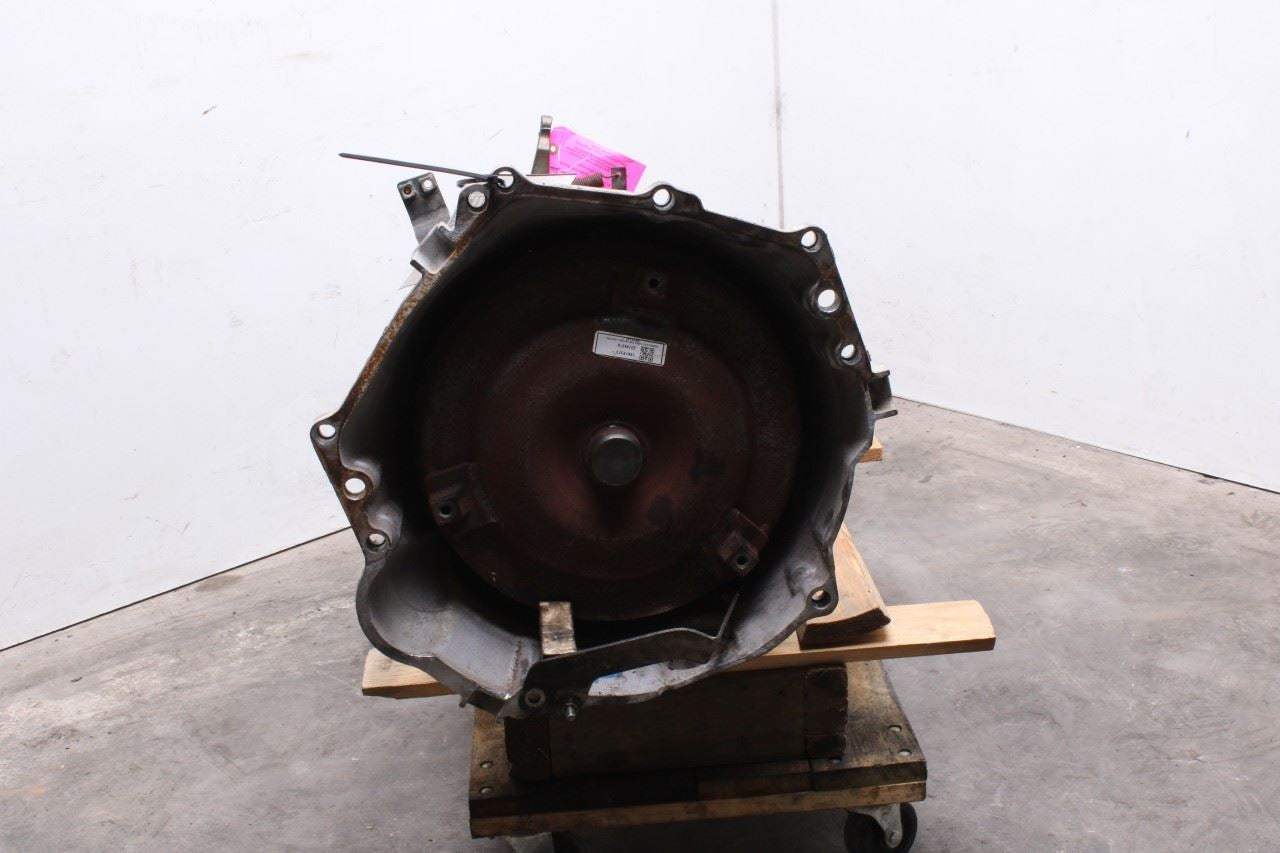

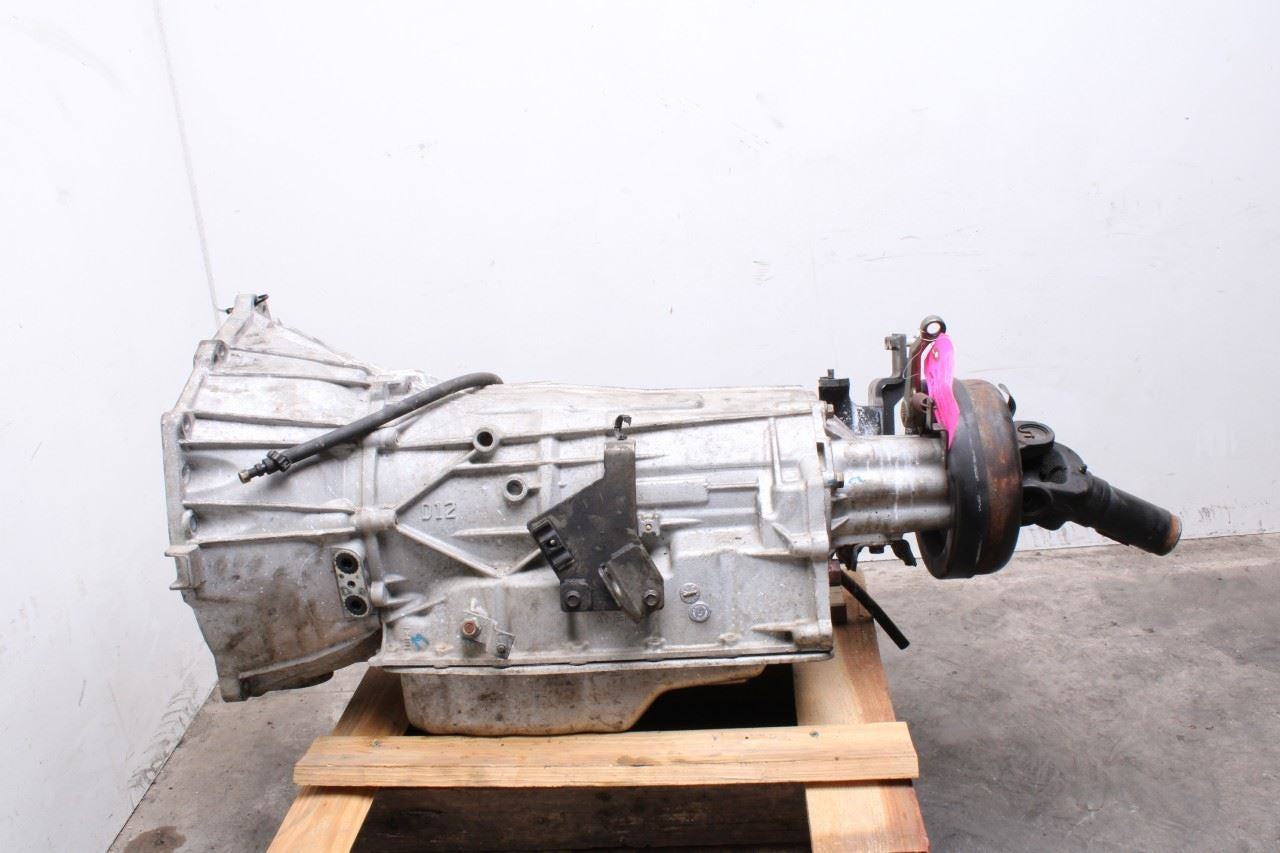

2012-2020 ISUZU NPR HD 6.0L 6-Speed Automatic Transmission 133K 8-24257-187-0

***Warranty covers the transmission case, torque converter (included for automatic transmissions only) and all internal components.
Transmission Warranty: ALL TRANSMISSIONS AND TRANSFER CASES MUST BE INSTALLED BY AN ""ASE"" CERTIFIED TRANSMISSION SHOP.
NEW FILTER, FLUIDS AND SEALS MUST BE INSTALLED.
ALL FLUID COOLER LINES MUST BE FLUSHED, SHIFT/DETENT CABLE OR LINKAGE ASSEMBLIES MUST BE ADJUSTED.
TORQUE CONVERTER MUST BE PROPERLY INSTALLED. CUSTOMER MUST OBTAIN INVOICES FOR ALL PARTS.
The warranty does not cover any external wiring, sensors or other external parts that can be transferred from your current transmission.
There is NO core charge for this transmission. To aid in installation, you get to keep your current transmission and all attached accessories.***

***What is NOT Covered:
It is the responsibility of the installer to replace the radiator or transmission oil cooler, flush the transmission oil cooling lines, fill differential, adjust shifter mechanisms, replace external switches sensors & solenoids, replace all filters, replace all seals, replace pan gaskets and Relearn, Reset or Replace computers and clear all codes when installing a transmission.
Re-learning or resetting the Transmission to the vehicle may involve towing (Not Driving) to a dealership of same manufacturer in order to be performed.
In certain types of Transmissions the TCM (transmission controlling computer) is incorporated with the Valve body which may require the valve body to be replaced.
Transfer cases are not included with transmission from AWD vehicles.
Warranty does NOT cover labor, diagnostic, towing or rental car costs.***

Installation Check List:
(Failure to complete the following will void Warranty)

- Determine why the original transmission failure occurred and make appropriate repairs
- Insure the product provided is materially the same as the one to be replaced
- Remove oil pan and replace filter.
- Remove torque converter strap.
- Replace front seal.
- Properly install and index the torque converter completely into the front pump.
- Inspect and replace rear seal as needed.
- Change over sensors as needed.
- Flush the transmission cooler lines and radiator with a power flush machine or with an aerosol 'Cooler Flush Kit'. This will ensure the cooling system is flowing.
- Replace the radiator or cooler if recommended by the manufacturer.
- Remove all 'cap-plugs' from lines and orifices.
- Clear all transmission computer codes in the vehicle prior to starting or operating.

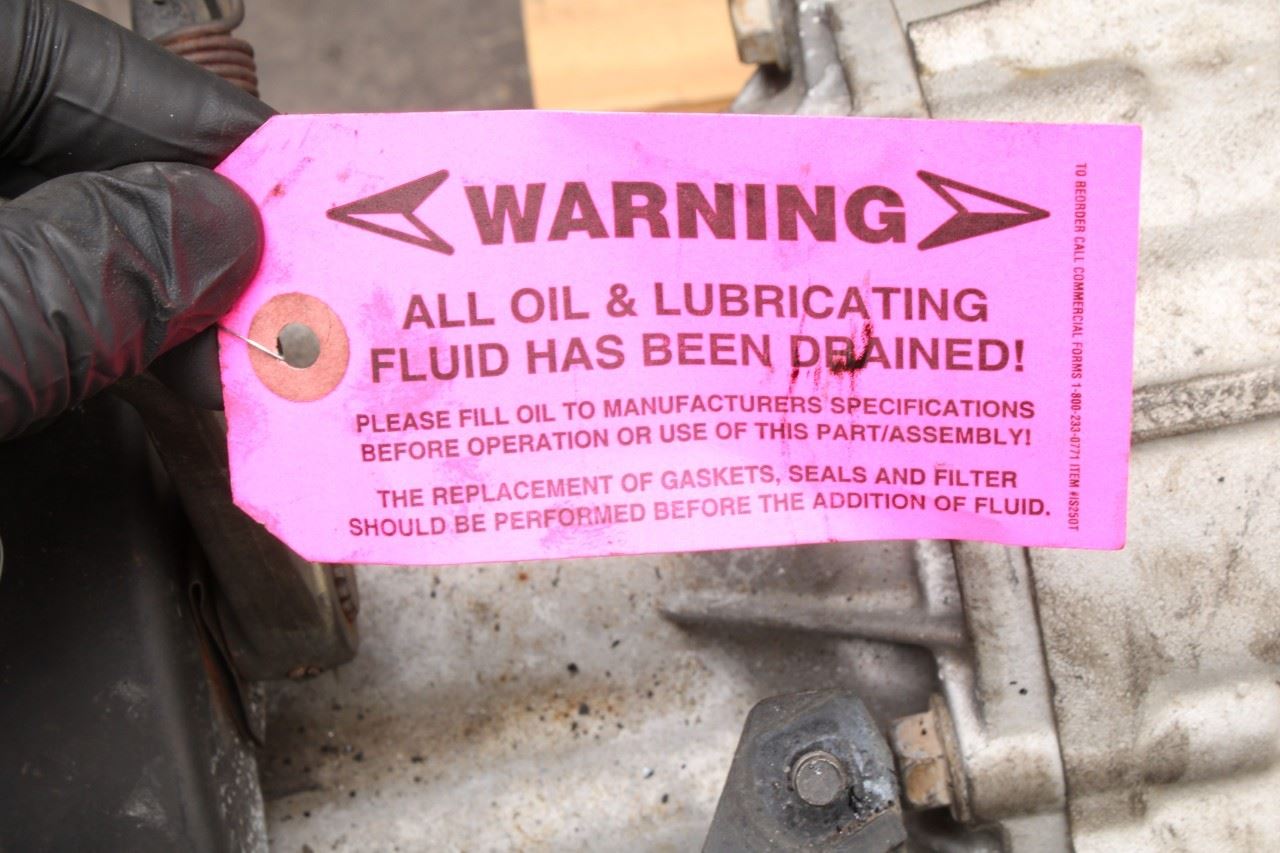

- Fill the transmission with the OEM recommended fluids.
- Verify the differential portion of the transmission is full of fluid.
- Most 4WD & some 2WD vehicles must re-learn the shift logic to the transmission after installation. You may verify with your local dealer if a re-learn is required for your vehicle. We do not reimburse for this service.

***Warranty does NOT cover labor, diagnostics, towing, rental car, or any other expense related to an item being defective/damaged***

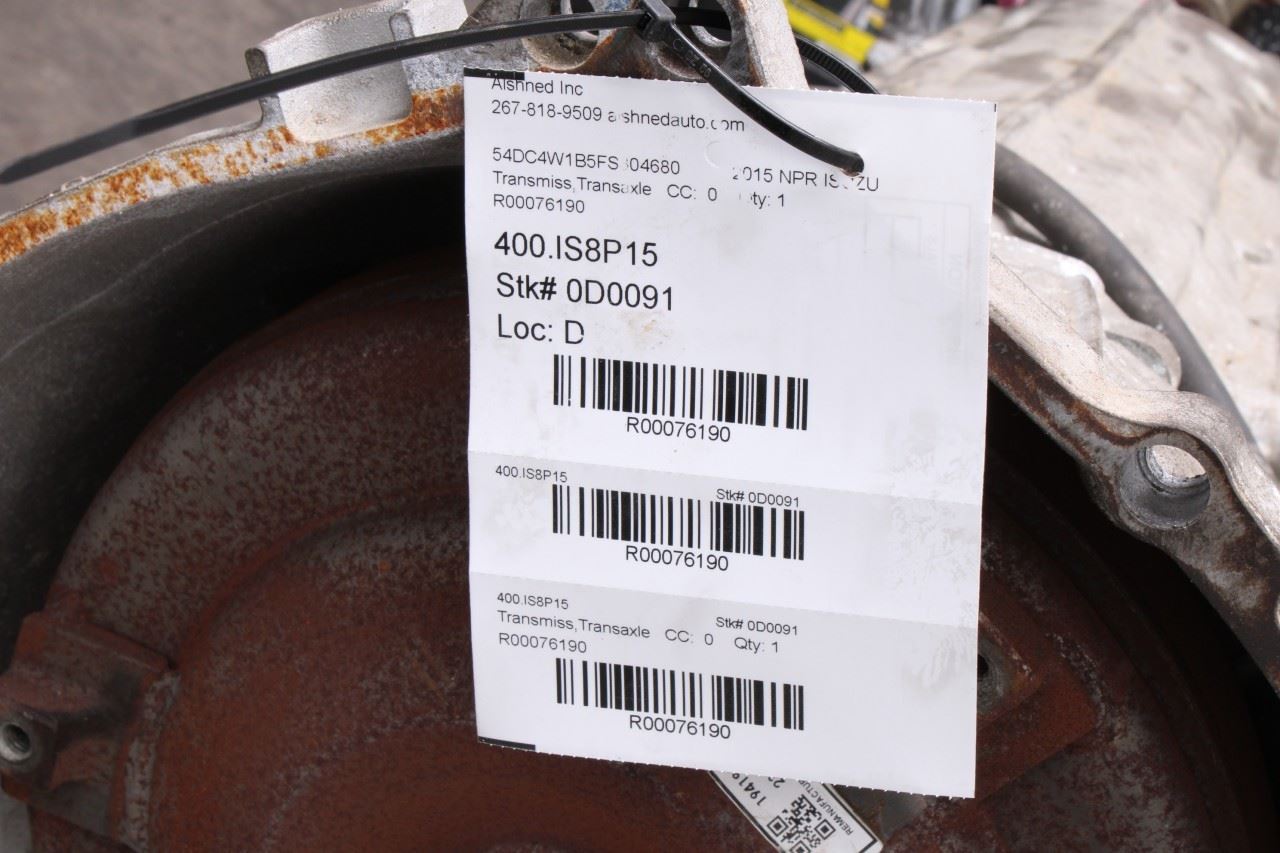

Donor vehicle 2015 ISUZU NPR HD White
VIN# 54DC4W1B5FS804680
Miles 133993
Body Type:Tilt Cab
Drive Type:Rear
Style:WB PWL
Engine: L96 GAS ENGINE, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED VORTEC 6 LITER SFI V8 297 HP GROSS @ 4300 RPM; 372 LB-FT GROSS TORQUE @ 4000 RPM.
Transmission: Brake System, Dual circuit, vacuum assisted hydraulic with EBD (Electronic Brake Distribution). Disc front and self-adjust outboard mounted drum rear. Mechanical, transmission mounted parking brake. Non-asbestos semi metallic linings are standard. 4 channel anti-lock brake system.

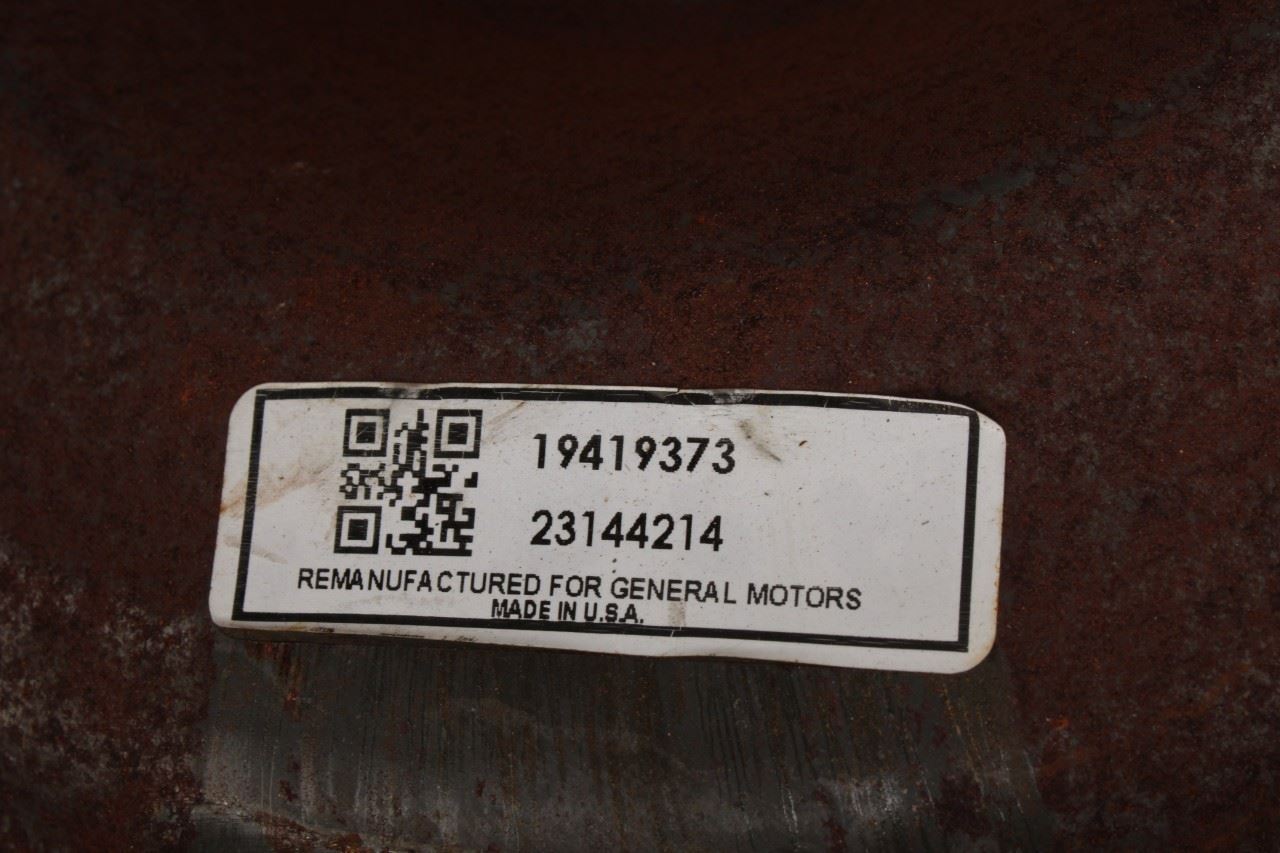

OEM 8-24257-187-0, 24257187, 19431755, 19419373, 23144214
Used
Normal use wear

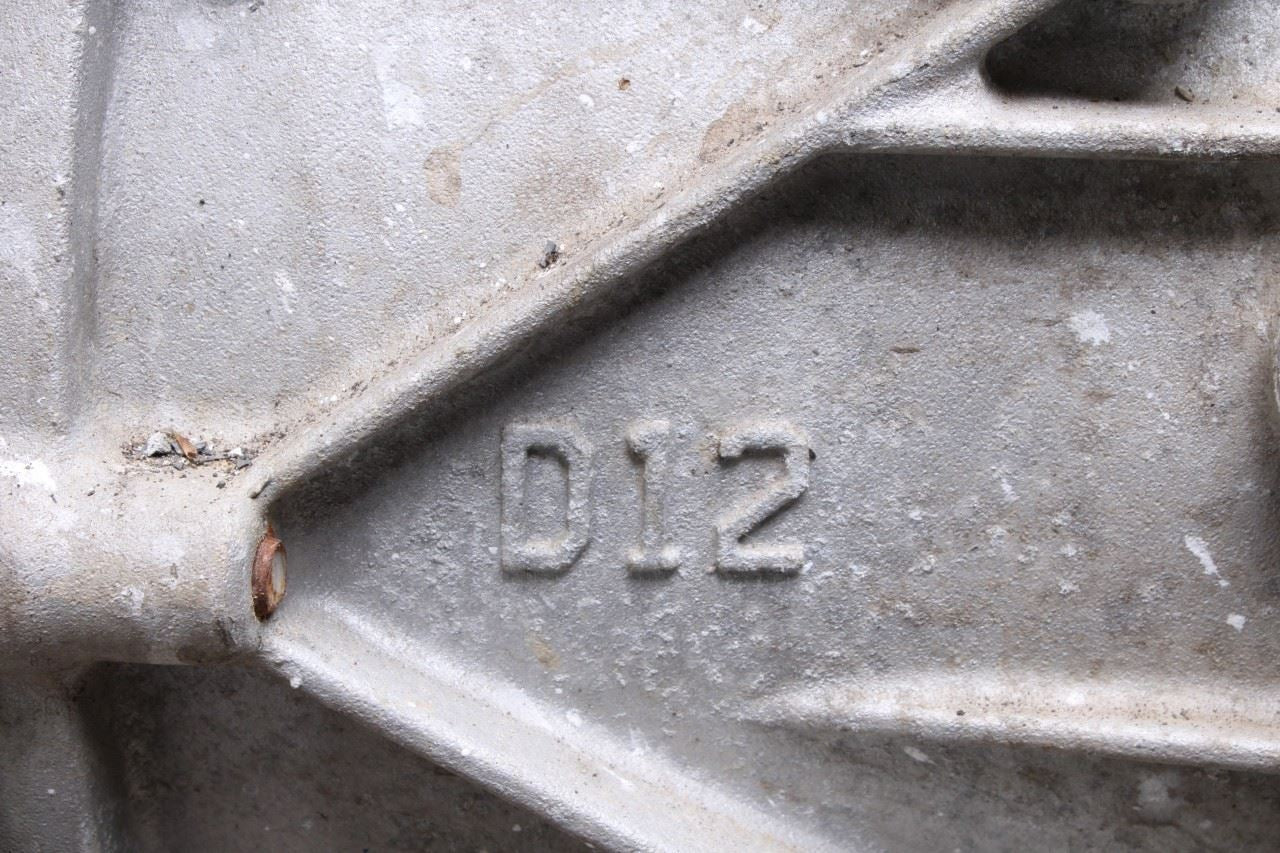

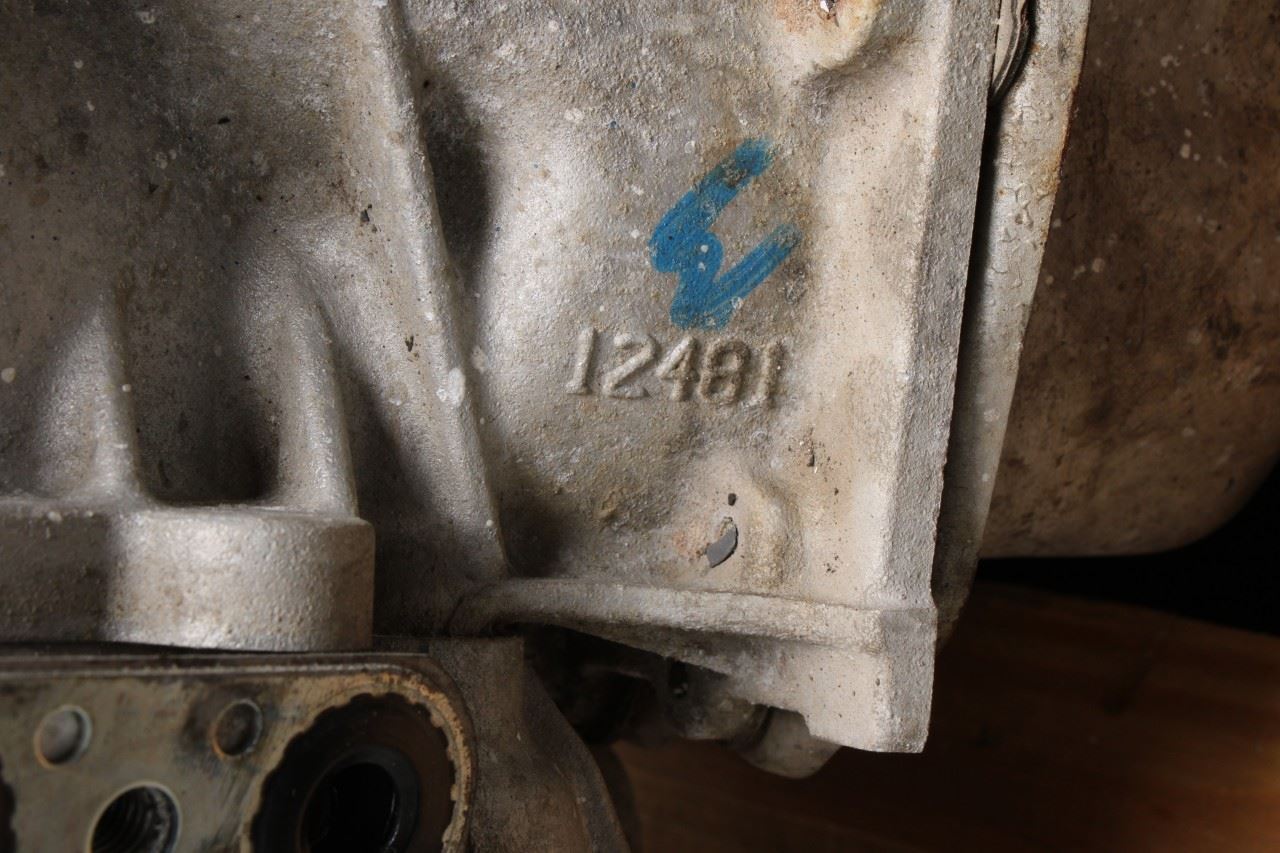

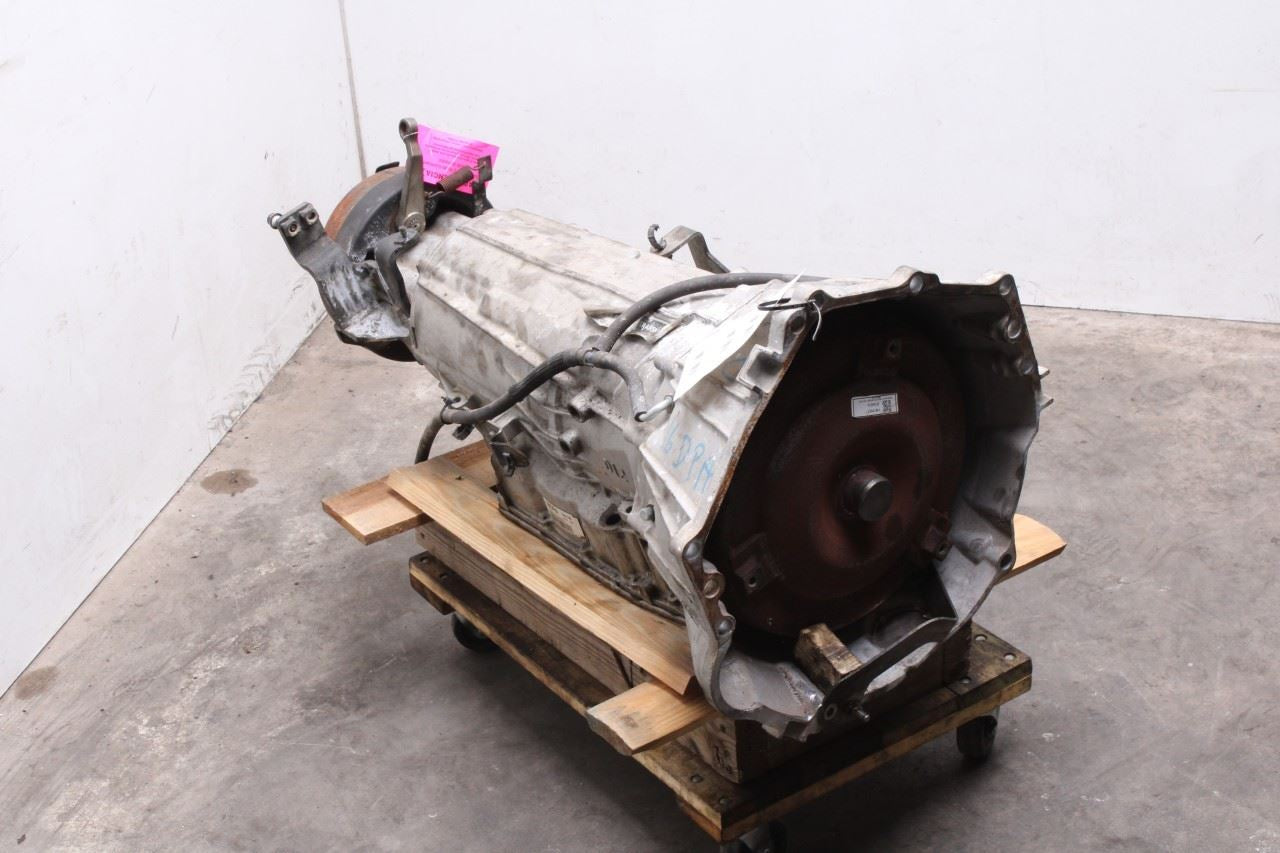

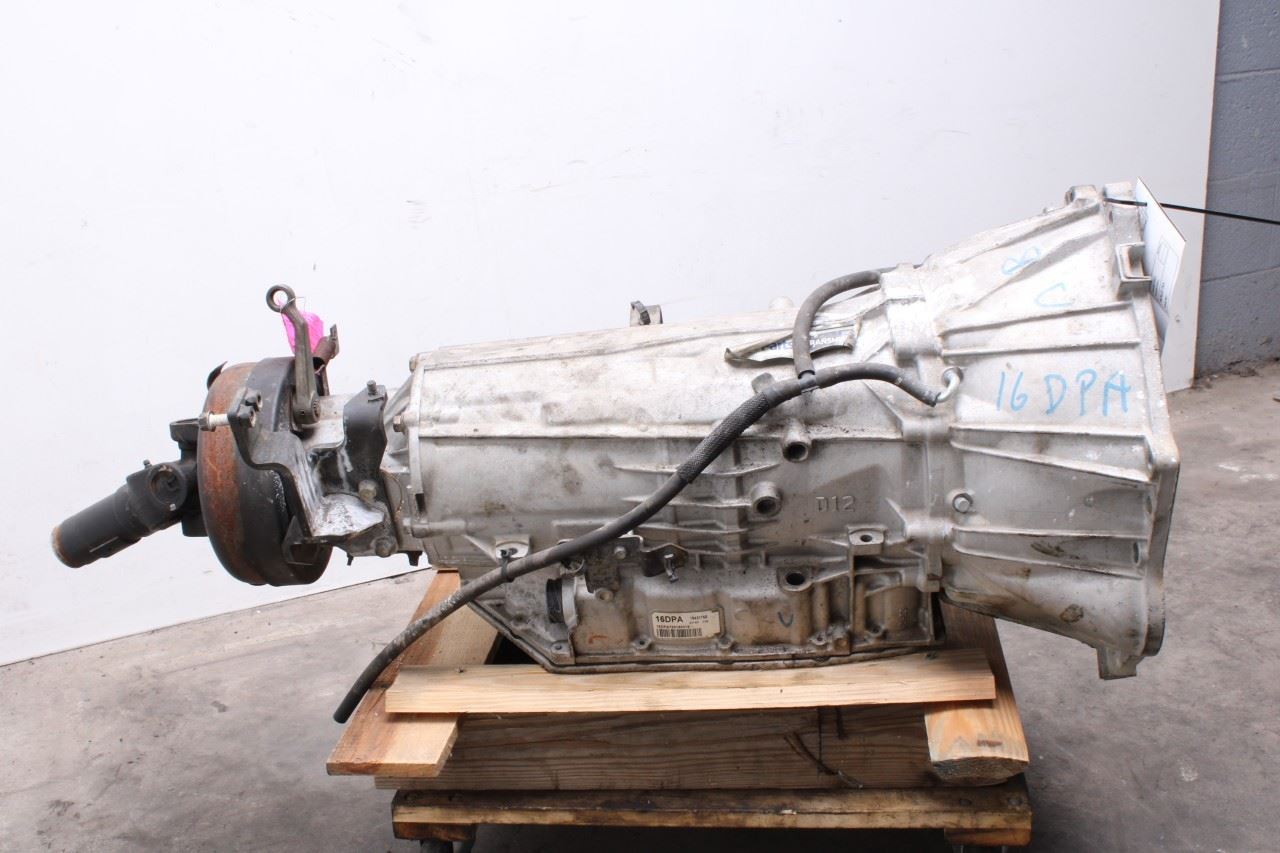

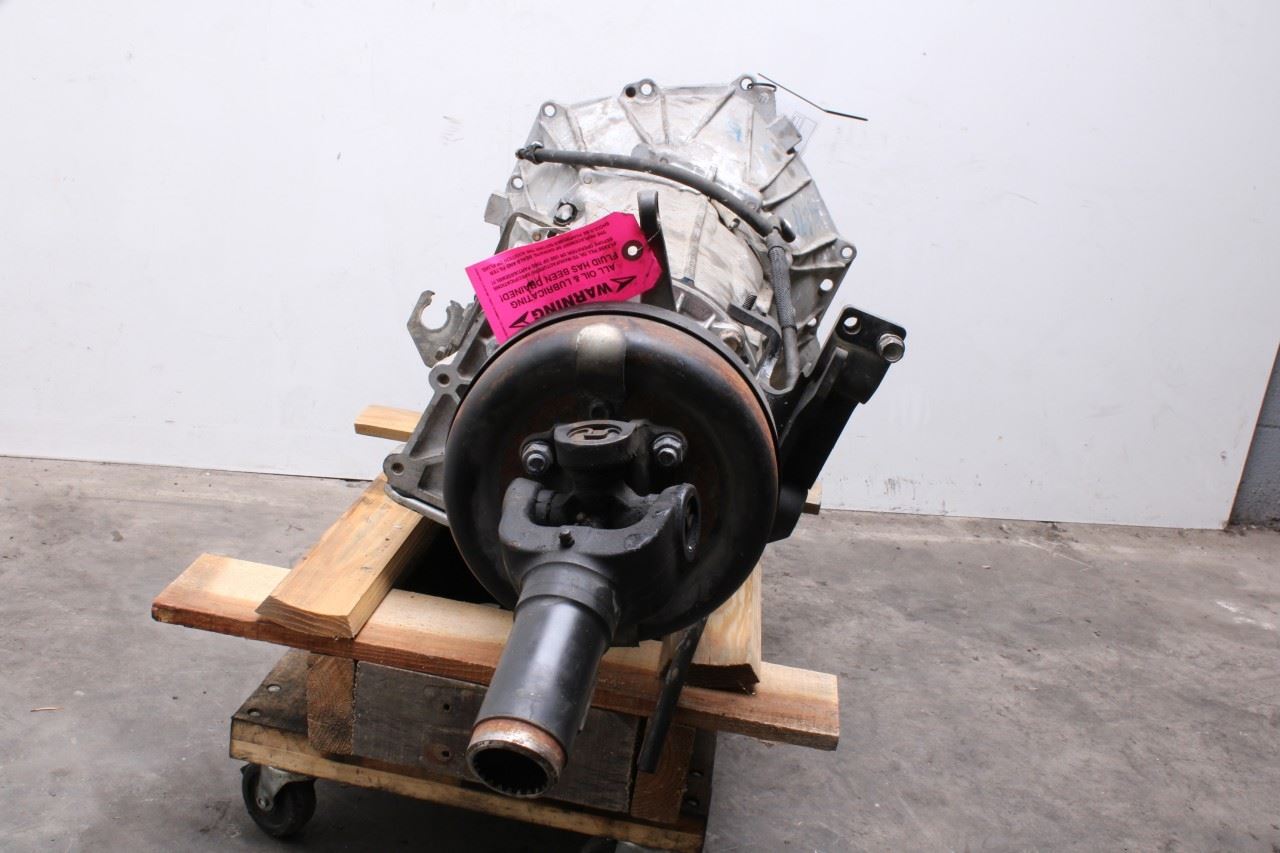

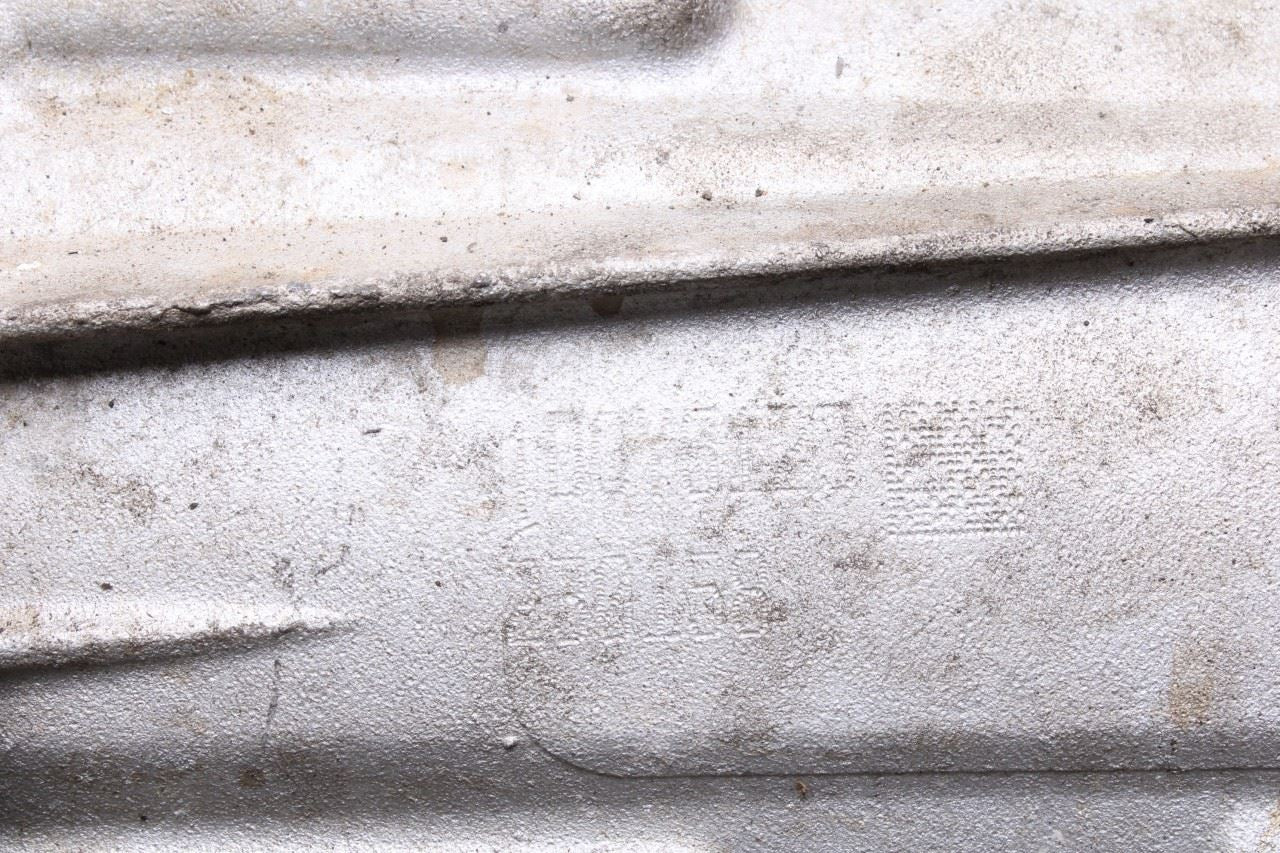

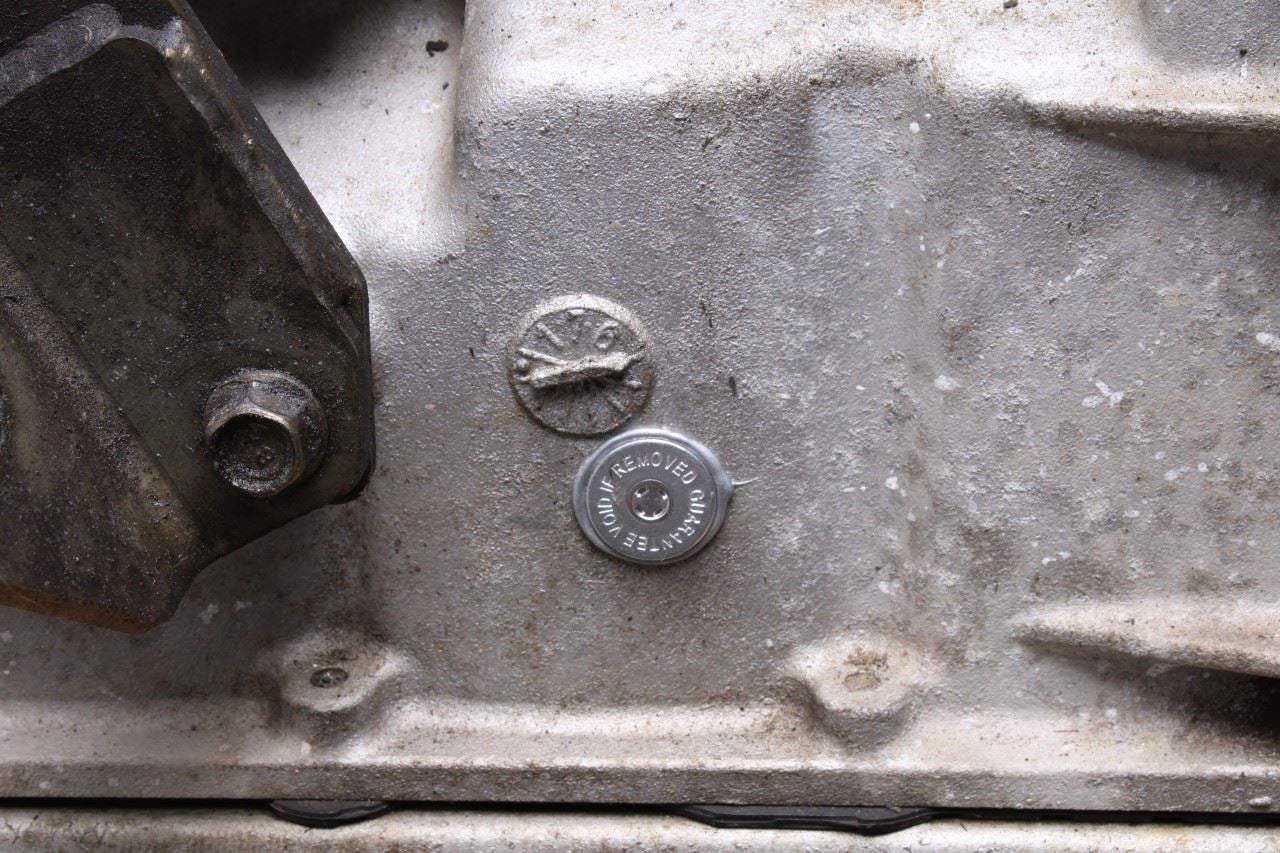

Actual pictures
